Martin Logan Abyss 8

Frequency Response
23–120 Hz ±3 dB (Anechoic via LFE input)

Low Frequency Transducer
Triple 8" (20.3cm) Hybrid Woofer System consisting of a single highexcursion, anodized-aluminum cone in a stamped steel basket with dual anodized-aluminum cone passive radiators

Amplifier
Magnitude MT-1kW Amplifier with 1,000W peak (500W continuous)

Digital Signal Processing
Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing

Cabinet
Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF structure with reinforced woofer baffles and center brace

Inputs
Line Level: Left, Right, and LFE
XLR: LFE
Speaker Level: Left and Right
(requires banana plugs)

Wireless Input
Integrated Wireless Receiver, Wireless Transmitter Included

Power Draw
Max: 500W
Standby (Wireless Disabled): 0.5W
Standby (Wireless Enabled): <2W
*Transmitter and Subwoofer combined

Feet
Integrated Anti-Vibration Feet (carpet spikes included)

Weight
21.2 kg

Dimensions (HxWxD)*
34.3cm x 33.5cm x 33.5cm

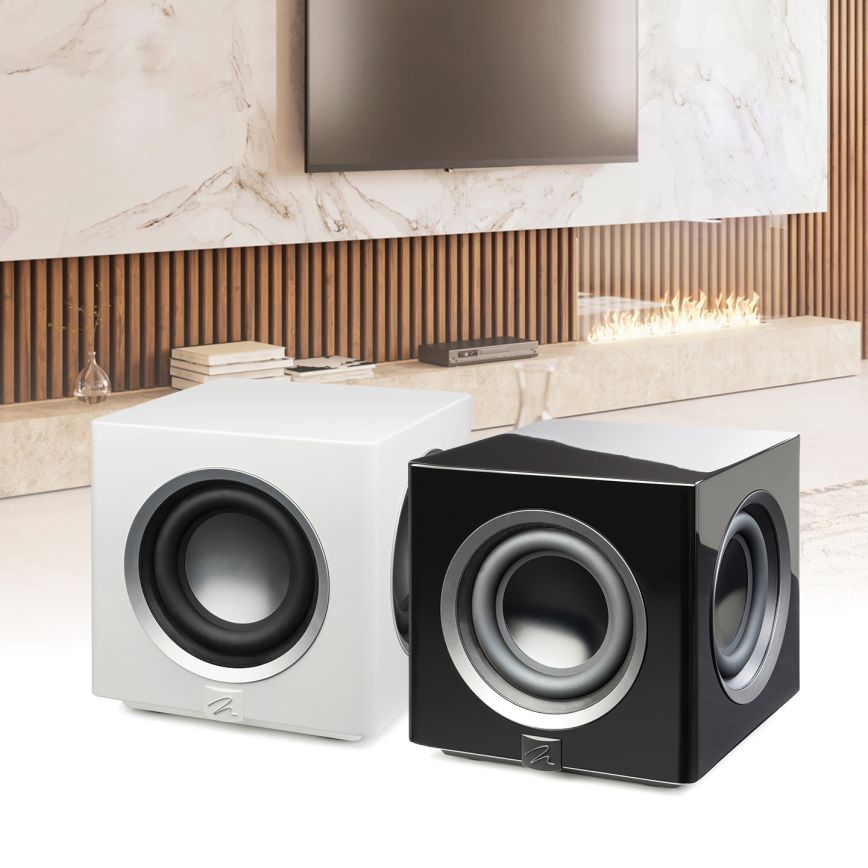

Finish
Gloss Black or Satin White
